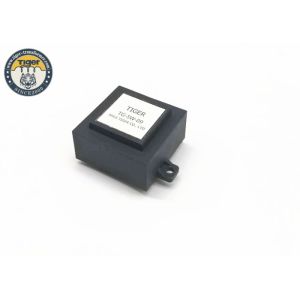

TG-5W-09 Encapsulated Power Transformer / PCB Mount Power Transformer

Product Categories
ANHUI TIGER CO,.LTD
Contact Now

TG-5W-09 Encapsulated Power Transformer / PCB Mount Power Transformer

  • 1
  • 2
  • 3

Brand Name : TIGER

Model Number : TG-5W-09

Certification : ISO, CE,UL, RoHS

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 10000 PCS/Day

Delivery Time : 15-20 Working days

Packaging Details : Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)

Name : Low frequency transformer

Phase : Single

Temperature Class : ta 40℃/B

Quality : 100% test

Port : Shanghai Or Tianjin

ODM, OEM : Accepted

Contact Now

TG-5W-09 PCB Mount Encapsulated Transformer with UL Certificate

Features:

• Safety transformer/short-circuit-proof
• Vacuum filled
• Split bobbin design
• Temperature class:40/B
• Dielectric strength: 4,500Vrms
• Weight: 95g
• With CE, UL, GS and RoHS marks
• OEM and ODM orders are welcome

• Very short time for provide samples for customers

Specifaction :

PART NO Primary
[V]		 Secondary
[V]		 Current
[mA]		 Pin No-Load Voltage
[V]		 Schematic No.
TG3005-E-0050-060-S 230v~ 6 83.3 1+5/7+9 9.7 1
TG3005-E-0050-090-S 230v~ 9 55.5 1+5/7+9 14.5 1
TG3005-E-0050-120-S 230v~ 12 41.6 1+5/7+9 20.5 1
TG3005-E-0050-150-S 230v~ 15 33.3 1+5/7+9 24.6 1
TG3005-E-0050-180-S 230v~ 18 27.8 1+5/7+9 28.4 1
TG3005-E-0050-240-S 230v~ 24 20.8 1+5/7+9 37.0 1
TG3005-E-0050-060-D 230v~ 2× 6 2×41.6 1+5/6+7-9+10 2×10.1 2
TG3005-E-0050-075-D 230v~ 2× 7.5 2×33.3 1+5/6+7-9+10 2×12.3 2
TG3005-E-0050-090-D 230v~ 2× 9 2×27.8 1+5/6+7-9+10 2×15.6 2
TG3005-E-0050-120-D 230v~ 2×12 2×20.8 1+5/6+7-9+10 2×19.9 2
TG3005-E-0050-150-D 230v~ 2×15 2×16.6 1+5/6+7-9+10 2×23.3 2
TG3005-E-0050-180-D 230v~ 2×18 2×13.8 1+5/6+7-9+10 2×27.9 2
TG3005-E-0050-240-D 230v~ 2×24 2×10.4 1+5/6+7-9+10 2×37.2 2
TG3005-U-0050-060-S 115v~ 6 83.3 1+5/7+9 9.7 1
TG3005-U-0050-090-S 115v~ 9 55.5 1+5/7+9 14.1 1
TG3005-U-0050-120-S 115v~ 12 41.6 1+5/7+9 20.5 1
TG3005-U-0050-150-S 115v~ 15 33.3 1+5/7+9 24.6 1
TG3005-U-0050-180-S 115v~ 18 27.8 1+5/7+9 28.4 1
TG3005-U-0050-240-S 115v~ 24 20.8 1+5/7+9 37.0 1
TG3005-U-0050-060-D 115v~ 2× 6 2×41.6 1+5/6+7-9+10 2×10.1 2
TG3005-U-0050-075-D 115v~ 2× 7.5 2×33.3 1+5/6+7-9+10 2×12.3 2
TG3005-U-0050-090-D 115v~ 2× 9 2×27.8 1+5/6+7-9+10 2×15.6 2
TG3005-U-0050-120-D 115v~ 2×12 2×20.8 1+5/6+7-9+10 2×19.9 2
TG3005-U-0050-150-D 115v~ 2×15 2×16.6 1+5/6+7-9+10 2×23.3 2
TG3005-U-0050-180-D 115v~ 2×18 2×13.8 1+5/6+7-9+10 2×27.9 2
TG3005-U-0050-240-D 115v~ 2×24 2×10.4 1+5/6+7-9+10 2×37.2 2
TG3005-U2-0050-060-S 2*115v~ 6 83.3 1+2-4+5/7+9 9.7 3
TG3005-U2-0050-090-S 2*115v~ 9 55.5 1+2-4+5/7+9 14.1 3
TG3005-U2-0050-120-S 2*115v~ 12 41.6 1+2-4+5/7+9 20.5 3
TG3005-U2-0050-150-S 2*115v~ 15 33.3 1+2-4+5/7+9 24.6 3
TG3005-U2-0050-180-S 2*115v~ 18 27.8 1+2-4+5/7+9 28.4 3
TG3005-U2-0050-240-S 2*115v~ 24 20.8 1+2-4+5/7+9 37.0 3
TG3005-U2-0050-060-D 2*115v~ 2× 6 2×41.6 1+2-4+5/6+7-9+10 2×10.1 4
TG3005-U2-0050-090-D 2*115v~ 2× 9 2×27.8 1+2-4+5/6+7-9+10 2×15.6 4
TG3005-U2-0050-120-D 2*115v~ 2×12 2×20.8 1+2-4+5/6+7-9+10 2×19.9 4
TG3005-U2-0050-150-D 2*115v~ 2×15 2×16.6 1+2-4+5/6+7-9+10 2×23.3 4
TG3005-U2-0050-180-D 2*115v~ 2×18 2×13.8 1+2-4+5/6+7-9+10 2×27.9 4
TG3005-U2-0050-240-D 2*115v~ 2×24 2×10.4 1+2-4+5/6+7-9+10 2×37.2 4
Application:
TG-5W-09 Encapsulated Power Transformer / PCB Mount Power Transformer
TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
Packing:
TG-5W-09 Encapsulated Power Transformer / PCB Mount Power Transformer
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
TG-5W-09 Encapsulated Power Transformer / PCB Mount Power Transformer
