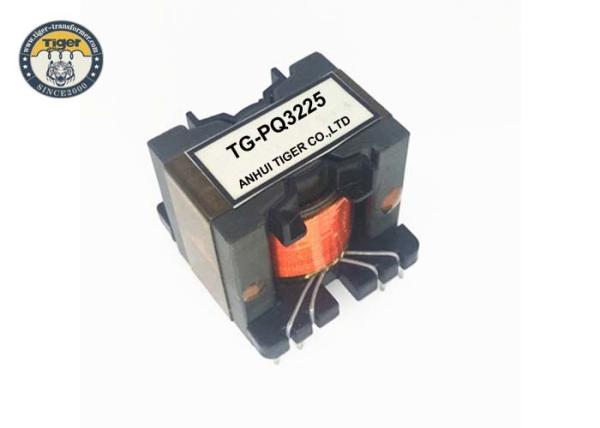

PQ3225 High Frequency PCB Mount Power Transformer With High Power Density

Name: PQ3225 High Frequency PCB Mount Power Transformer With High Power Density
Brand: TIGER
Price: 1 USD

Cheap PQ3225 High Frequency PCB Mount Power Transformer With High Power Density for sale

Brand Name : TIGER

Certification : ISO, CE,UL, RoHS

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 10000 PCS/Day

Delivery Time : 15-20 Working days

Packaging Details : Carton: size 28*20*17cm Pallet : size 90*90*95cm (60 cartons)

Model Number : PQ3225

Name : High Frequency Transformer

Coil Structure : PQ

Product Type : Vertical

HS Code : 8504500000999

Packing : Carton

Lead time : 15-20 days

Port : Shanghai or Tianjin

Contact Now

PQ3225 PCB Mounting High Frequency Transformer With Customized Design

Features:

• Core mounted Horizontal or Vertical
• Hipot voltage:2500Vrms
• Ferrite core material
• High-temperature resistant
• High efficiency of over 95%
• Working frequency range 20kHZ-500kHZ
• High isolation strength
• Lower profile and weight
• high power density
• Operating temperature -40℃to+125℃
• Custom designs available
• Rate current @40℃ TYP temperature rise
• Ideally used as common mode noise filter for TV,VCR,
Switching power supply,NC machine,PC&PC related
advice,measurement and control unit

According to:

Quick Review:

Usage	High Frequency	Operating Temperature	-40℃ to +125℃
Coil Number	Autotransformer	Storage Temperature	-25℃ to +85℃
Model Number	PQ3225	Working Frequency	1KHz to 200KHz
Shape	Vertical, Horizontal	Phase Number	Single

Specifaction :

PART NO.	PINS	Dimensions(mm)
PART NO.	PINS	A	B	C+/-0.5	D+/-0.5	E	E1	F
TG-PQ2020	14	22.3	23	20.3	4	5	3.8	23
TG-PQ2620	12	20	29.3	25.4	4	7.7	3.8	26.3
TG-PQ2625	12	28.5	29.6	25.5	4	7.62	3.8	27
TG-PQ3220	12	23.5	34.4	30.7	4	7.62	3.8	32.4
TG-PQ3230	12	33.5	34.2	30.7	4	7.52	5.08	32.3
TG-PQ3535	12	37.5	39.1	35.6	5	10.16	5.08	35
TG-PQ4040	12	41.5	42	38	5	15	5.08	40
